# Playing with Paths
|
||||
# 玩转 Paths
|
||||
|
||||
I recently helped out with a hero animation in an app–unfortunately I can’t share this animation just yet… but I wanted to share what I learned making it. In this post I’ll walk through recreating this mesmerizing animation by [Dave ‘beesandbombs’ Whyte](https://beesandbombs.tumblr.com/) which demonstrates many of the same techniques:
|
||||
我最近帮别人实现了一个 app 里面英雄人物的动画。然而，我现在还不能把这个动画分享给你们。但我想分享在实现它的过程中学到的东西。在这篇文章中，我将回顾如何重现这些由 [Dave ‘beesandbombs’ Whyte](https://beesandbombs.tumblr.com/) 展示的迷人动画，其中演示了很多一样的实现技巧。
|
||||
|
||||
|
||||
|
||||
[_Polygon Laps_](https://beesandbombs.tumblr.com/post/161295765794/polygon-laps) by beesandbombs 🐝💣
|
||||
beesandbombs 展示的[多边形绕圈](https://beesandbombs.tumblr.com/post/161295765794/polygon-laps)
|
||||
|
||||
My first thought when looking at this (which might not be much of a surprise to anyone who knows my work) was to reach for an `[AnimatedVectorDrawable](https://developer.android.com/reference/android/graphics/drawable/AnimatedVectorDrawable.html)` (`AVD` hereafter). `AVD`s are great, but they’re not suitable for every situation — specifically we had the following requirements:
|
||||
当我看到这个时（对熟悉我工作的人来说可能不是很惊讶），第一想法是使用 [AnimatedVectorDrawable](https://developer.android.com/reference/android/graphics/drawable/AnimatedVectorDrawable.html) (下文会简称为 `AVD`)。`AVD` 很好用，但不是适用所有的情况 —— 特别是我们有如下的需求的话：
|
||||
|
||||
* I knew we’d need to draw a polygon, but we hadn’t settled on the exact shape. `AVD`s are “pre-baked” animations, as such varying the shape would require re-making the animation.
|
||||
* Part of the ‘progress tracking’ aspect, we’d want to only draw a portion of the polygon. `AVD`s are ‘fire-and-forget’ i.e. you can’t scrub through them.
|
||||
* We wanted to move another object around the polygon. This is definitely achievable with `AVD`s… but again would require a lot of upfront work to pre-calculate the composition.
|
||||
* We wanted to control the progress of the object moving around the polygon separately from the portion of the polygon being shown.
|
||||
* 我知道我们需要画一个多边形，但还没却确定具体要画哪个形状。`AVD` 是需要预先设定参数的动画，即改变形状需要重新设置动画。
|
||||
* 关于动画进度追踪的问题，我们只想要绘制多边形的一部分。`AVD` 是“义无反顾”地执行任务，如果动画开始后，它会完整地执行完整个动画，换句话说你不能取消它。
|
||||
* 我们想要使另一个物体绕着多边形运动。这个当然也可以通过 `AVD` 实现。但它还是需要很多事前工作去计算想生成的轨迹。
|
||||
* 我们想把绕多边形物体的运动进度与多边形的显示分离开来，独立控制。
|
||||
|
||||
Instead I opted to implement this as a custom `[Drawable](https://developer.android.com/reference/android/graphics/drawable/Drawable.html)`, made up of `[Path](https://developer.android.com/reference/android/graphics/Path.html)` objects. `Path`s are a fundamental representation of a shape (which `AVD`s use under the hood!) and Android’s `[Canvas](https://developer.android.com/reference/android/graphics/Canvas.html)` APIs offer pretty rich support for creating interesting effects with them. Before going through some of these, I want to give a shout out to this excellent post by [Romain Guy](https://medium.com/@romainguy) which demonstrates many of techniques which I build upon in this post:
|
||||
因此我选择用自定义 [Drawable](https://developer.android.com/reference/android/graphics/drawable/Drawable.html) 来实现，其中包含多个 [Path](https://developer.android.com/reference/android/graphics/Path.html) 对象。`Path` 是对图形形状的基本描绘（AVD 中实际也使用了 Path！），而且 Android [Canvas](https://developer.android.com/reference/android/graphics/Canvas.html) 的 API也是借助 Path 来生成各种有趣的效果。在实现一些效果之前，我想强烈推荐 [Romain Guy](https://medium.com/@romainguy) 这篇写得很好的文章，里面展示的很多技巧就是我在本文所用到的：
|
||||
|
||||
[**Android Recipe #4, path tracing**](http://www.curious-creature.com/2013/12/21/android-recipe-4-path-tracing/)
|
||||
|
||||
#### Polar coordination
|
||||
#### 极坐标系
|
||||
|
||||
Usually when defining 2d shapes, we work in (x, y) coordinates technically known as cartesian coordinates. They define shapes by specifying points by their distance from the origin along the x and y axes. An alternative is the polar coordinate system which instead defines points by an angle (θ) and a radius (r) from the origin.
|
||||
当定义 2d 形状的时候，我们通常在笛卡尔坐标系 (x,y) 中进行定义。通过指定 x 轴和 y 轴上离原点的距离，来定义图形形状。而另一个我们可选用的极坐标系，则是定义离原点的角度和半径长度。
|
||||
|
||||
|
||||
|
||||
Cartesian coordinates (left) vs polar coordinates (right)
|
||||
笛卡尔坐标系（左边）vs 极坐标系（右边）
|
||||
|
||||
We can convert between polar and cartesian coords with this formula:
|
||||
我们可以通过这两条公式进行极坐标系和笛卡尔坐标系之间的转换：
|
||||
|
||||
```
|
||||
val x = radius * Math.cos(angle);
|
||||
val y = radius * Math.sin(angle);
|
||||
```
|
||||
|
||||
I highly recommend this post to learn more about polar coordinates:
|
||||
我强烈推荐读下面这篇文章以了解更多关于极坐标系的内容：
|
||||
|
||||
[**Polar Coordinates 🌀**](http://varun.ca/polar-coords/ "http://varun.ca/polar-coords/")
|
||||
[**极坐标系**](http://varun.ca/polar-coords/ "http://varun.ca/polar-coords/")
|
||||
|
||||
To generate regular polygons (i.e. where each interior angle is the same), polar coordinates are extremely useful. You can calculate the angle necessary to produce the desired number of sides (as the interior angles total 360º) and then use multiples of this angle with the same radius to describe each point. You can then convert these points into cartesian coordinates which graphics APIs work in. Here’s a function to create a `Path` describing a polygon with a given number of sides and radius:
|
||||
为了能生成规则的多边形（例如每个内角的度数相同），极坐标系能起到非常大的作用。为了生成想要的边数，你可以通过计算求出对应的度数（因为内角度数和是 360 度），然后借助同一个半径，再利用这个度数的多个倍数关系去描绘出每个点。 你可以用图形 API 将这些点坐标转化为笛卡尔坐标。下面是一个通过给定的边数和半径生成多边形 `Path` 的函数：
|
||||
|
||||
```
|
||||
fun createPath(sides: Int, radius: Float): Path {
|
||||
@@ -64,7 +64,7 @@ fun createPath(sides: Int, radius: Float): Path {
|
||||
|
||||
|
||||
|
||||
So to recreate our target composition, we can create a list of polygons with different numbers of sides, radius and colors. `Polygon` is a simple class which holds this info and calculates the `Path`:
|
||||
所以为了生成想要的多边形组合，我们创建了一个有不同边数、半径和颜色的多边形 list 集合。`Polygon` 是一个持有这些信息和计算相应 `Path` 的类：
|
||||
|
||||
```
|
||||
private val polygons = listOf(
|
||||
@@ -77,15 +77,15 @@ private val polygons = listOf(
|
||||
|
||||
|
||||
|
||||
#### Effective path painting
|
||||
#### 有效的 path 绘制
|
||||
|
||||
Drawing a Path is simple using `[Canvas.drawPath(path, paint)](https://developer.android.com/reference/android/graphics/Canvas.html#drawPath%28android.graphics.Path,%20android.graphics.Paint%29)` but the `[Paint](https://developer.android.com/reference/android/graphics/Paint.html)` parameter [supports](https://developer.android.com/reference/android/graphics/Paint.html#setPathEffect%28android.graphics.PathEffect%29) a `[PathEffect](https://developer.android.com/reference/android/graphics/PathEffect.html)` which we can use to alter _how_ the path will be drawn. For example we can use a `[CornerPathEffect](https://developer.android.com/reference/android/graphics/CornerPathEffect.html)` to round off the corners of our polygon or a `[DashPathEffect](https://developer.android.com/reference/android/graphics/DashPathEffect.html)` to only draw a portion of the `Path` (see the ‘Path tracing’ section of the aforementioned [post](http://www.curious-creature.com/2013/12/21/android-recipe-4-path-tracing/) for more details on this technique):
|
||||
绘制一个 Path 只需简单地调用 [Canvas.drawPath(path, paint)](https://developer.android.com/reference/android/graphics/Canvas.html#drawPath%28android.graphics.Path,%20android.graphics.Paint%29) 但是 [Paint](https://developer.android.com/reference/android/graphics/Paint.html) 类的参数[支持](https://developer.android.com/reference/android/graphics/Paint.html#setPathEffect%28android.graphics.PathEffect%29) [PathEffect](https://developer.android.com/reference/android/graphics/PathEffect.html)，借助这个我们可以去更改 path 被绘制时的效果。 例如我们可以使用 [CornerPathEffect](https://developer.android.com/reference/android/graphics/CornerPathEffect.html) 去把我们的多边形的各个角圆滑化处理或者是用 [DashPathEffect](https://developer.android.com/reference/android/graphics/DashPathEffect.html) 去分段地画出 `Path`（虚线效果，译者注）（关于这个技巧的更多细节，请阅读前面提到的那篇 Path tracing [文章](http://www.curious-creature.com/2013/12/21/android-recipe-4-path-tracing/) ）：
|
||||
|
||||
|
||||
|
||||
> An alternative technique for drawing a subsection of a path is to use `[PathMeasure#getSegment](https://developer.android.com/reference/android/graphics/PathMeasure.html#getSegment%28float%2C%20float%2C%20android.graphics.Path%2C%20boolean%29)` which copies a portion into a new `Path` object. I used the dash technique as animating the `interval` and `phase` parameters enabled interesting possibilities.
|
||||
> 另外一种画分段 path 的方法是使用 [PathMeasure#getSegment](https://developer.android.com/reference/android/graphics/PathMeasure.html#getSegment%28float%2C%20float%2C%20android.graphics.Path%2C%20boolean%29)，它能复制 path 的某一部分到一个新的 Path 对象。我是直接使用了能画出虚线的方法，就像自己改变了绘制的时间间隔和分段绘制实现的效果一样。
|
||||
|
||||
By exposing the parameters controlling these effects as properties of our drawable, we can easily animate them:
|
||||
通过暴露这些控制 drawable 特性的参数，我们可以很容易地生成动画：
|
||||
|
||||
```
|
||||
object PROGRESS : FloatProperty<PolygonLapsDrawable>("progress") {
|
||||
@@ -105,17 +105,17 @@ ObjectAnimator.ofFloat(polygonLaps, PROGRESS, 0f, 1f).apply {
|
||||
}.start()
|
||||
```
|
||||
|
||||

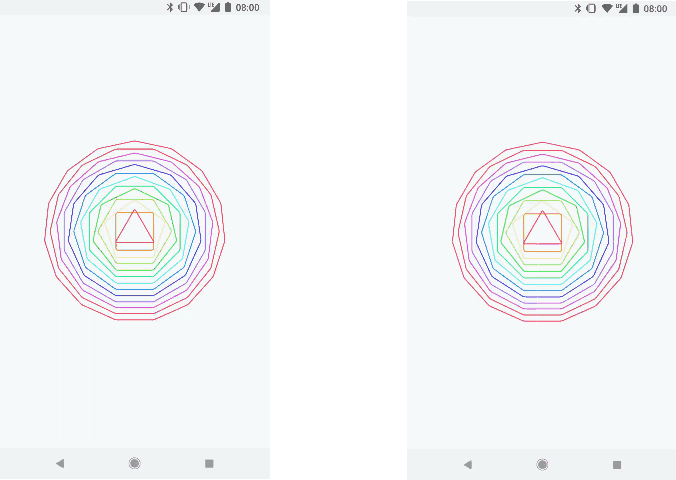

For example, here are different ways of animating the progress of the concentric polygon paths:
|
||||
例如，这是绘制同心圆多边形 path 过程的不同动画效果：
|
||||
|
||||
|
||||
|
||||
#### Stick to the path
|
||||
#### 吸附在 path 上
|
||||
|
||||
To draw objects along the path, we can use a `[PathDashPathEffect](https://developer.android.com/reference/android/graphics/PathDashPathEffect.html)`. This ‘stamps’ another `Path` along a path, so for example stamping blue circles along a polygon might look like this:
|
||||
为了绘制某个沿着 path 的物体，我们可以使用 [PathDashPathEffect](https://developer.android.com/reference/android/graphics/PathDashPathEffect.html). 这会把另一个 `Path` 沿着某条 path “点印”在它上面，例如像这样以蓝色圆形形状沿着一个多边形的边点印在上面：
|
||||
|
||||
|
||||
|
||||
`PathDashPathEffect` accepts `advance` and `phase` parameters — that is the gap between stamps and how far to move along the path before the first stamp. By setting the advance to the length of the entire path (obtained via `[PathMeasure#getLength](https://developer.android.com/reference/android/graphics/PathMeasure.html#getLength%28%29)`), we can draw a single stamp. By animating the phase (here controlled by a `dotProgress` parameter [0, 1]) we can make this single stamp move along the path.
|
||||
`PathDashPathEffect` 接收 `advance` 和 `phase` 两个参数 —— 分别对应每个 stamp（绘制在 path 上面的物体，译者注）之间的间距和绘制第一个 stamp 在 path 上的偏移量。通过把每个 stamp 的间距设置为和整个 path 的长度一样(通过 [PathMeasure#getLength](https://developer.android.com/reference/android/graphics/PathMeasure.html#getLength%28%29) 获取)， 我们就可以只绘制出一个 stamp。然后再通过不断改变偏移量，（偏移量是由 `dotProgress` 范围 [0, 1] 控制）我们就可以实现只有一个 stamp 沿着 path 在运动的动画效果。
|
||||
|
||||
```
|
||||
val phase = dotProgress * polygon.length
|
||||
@@ -124,46 +124,46 @@ dotPaint.pathEffect = PathDashPathEffect(pathDot, polygon.length,
|
||||
canvas.drawPath(polygon.path, dotPaint)
|
||||
```
|
||||
|
||||
We now have all of the ingredients to create our composition. By adding another parameter to each polygon of the number of ‘laps’ each dot should complete per animation loop, we produce this:
|
||||
我们现在有生成我们图形的所有要素。通过添加另一个参数，就是每个点在每个多边形上所对应的第几“圈”的圈数，每个点会完成对应的绕圈动画。能生成像这样的效果：
|
||||
|
||||
|
||||
|
||||
|
||||
|
||||
|
||||
A re-creation of the original gif as an Android drawable
|
||||
通过 Android drawable 实现原本 gif 的效果
|
||||
|
||||
You can find the source for this drawable here:
|
||||
你可以通过下面的链接获得这个 drawable 的源码：
|
||||
[https://gist.github.com/nickbutcher/b41da75b8b1fc115171af86c63796c5b#file-polygonlapsdrawable-kt](https://gist.github.com/nickbutcher/b41da75b8b1fc115171af86c63796c5b#file-polygonlapsdrawable-kt)
|
||||
|
||||
#### Show some style
|
||||
#### 展示不同的效果
|
||||
|
||||
The eagle eyed amongst you might have noticed the final parameter to `PathDashPathEffect`: `[Style](https://developer.android.com/reference/android/graphics/PathDashPathEffect.Style.html)`. This enum controls how to transform the stamp at each position it is drawn. To illustrate how this parameter works the example below uses a triangular stamp instead of a circle and shows both the `translate` and `rotate` styles:
|
||||
你们可能已经注意到 PathDashPathEffect 构造方法中最后的参数：[Style](https://developer.android.com/reference/android/graphics/PathDashPathEffect.Style.html)。这个枚举类控制在 path 上面的 stamp 在每个位置上是如何被绘制的。为了展示这个参数的使用，下面的例子使用了一个三角形 stamp 代替圆形，去展示`平移（translate）`和`旋转（rotate）`的效果差别：
|
||||
|
||||
|
||||
|
||||
|
||||
_Comparing_ `_translate_` _style (left) with_ `_rotate_` _(right)_
|
||||
比较`平移`和`旋转`效果的异同
|
||||
|
||||
Notice that when using `translate` the triangle stamp is always in the same orientation (pointing left) whilst with the `rotate` style, the triangles rotate to remain tangential to the path.
|
||||
注意到使用 `translate` 效果时，三角形 stamp 方向总是相同的（箭头方向指向左）而如果是 `rotate` 效果的话，三角形会旋转自身保持在处于 path 的切线方向上。
|
||||
|
||||
There’s a final `style` called `morph` which actually _transforms_ the stamp. To illustrate this behaviour, I’ve changed the stamp to a line below. Notice how the lines _bend_ when traversing the corners:
|
||||
还有一种 `类型` 叫做 `morph`，能让 stamp 平稳变换。为了展示这个效果，我把 stamp 变成了如下的一条线段。请观察当经过角落时，线段是如何弯曲的：
|
||||
|
||||
|
||||
|
||||
Demonstrating `PathDashPathEffect.Style.MORPH`
|
||||
当PathDashPathEffect.Style的类型为 `MORPH`
|
||||
|
||||
This is an interesting effect but seems to struggle in some circumstances like the start of the path or tight corners.
|
||||
有趣的是，某些情况下，在 path 的开头或紧密的角落，stamp 的形状有点扭曲。
|
||||
|
||||
> Note that you can combine `PathEffect`s using a `ComposePathEffect`, that’s how the path stamp follows the rounded corners here, by composing a `PathDashPathEffect` with a `CornerPathEffect`.
|
||||
> 提醒一点你可以使用 `ComposePathEffect` 去组合多种 `PathEffect` 在一起，通过将 `PathDashPathEffect`和 `CornerPathEffect` 一起组合使用，可以实现让 stamp 在有圆滑角落的 path 上运动。
|
||||
|
||||
#### Going on a tangent
|
||||
#### 使用正切
|
||||
|
||||
While the above was all we need to recreate the polygon laps composition, my initial challenge actually called for a bit more work. A drawback with using `PathDashPathEffect` is that the stamps can only be a single shape and color. The composition I was working on called for a more sophisticated marker so I had to move beyond the path stamping technique. Instead I use a `Drawable` and calculate where along the `Path` it needs to be drawn for a given progress.
|
||||
上面我们所讨论的是关于如何生成多边形的绕圈组合，而我最初的需求实际上还要麻烦点。使用 `PathDashPathEffect` 的缺点是只能应用一种单一的形状和颜色。我自己的作品需要有更精巧的标记（marker，即 stamp，译者注），所以我用一种比点印在 path 上更好的办法。我使用了 `Drawable` 并且计算给定一个进度的话，沿着 Path 标记需要在哪个地方绘制出来。
|
||||
|
||||
|
||||
|
||||
_Moving a_ `_VectorDrawable_` _along a path_
|
||||
###### 沿着 path 移动 VectorDrawable
|
||||
|
||||
To achieve this, I again used the `PathMeasure` class which offers a `[getPosTan](https://developer.android.com/reference/android/graphics/PathMeasure.html#getPosTan%28float%2C%20float%5B%5D%2C%20float%5B%5D%29)` method to obtain position coordinates and tangent at a given distance along a `Path`. With this information (and a little math), we can translate and rotate the canvas to draw our `marker` drawable at the correct position and orientation:
|
||||
为了实现这个效果，我再次使用 `PathMeasure` 类，它提供了 [getPosTan](https://developer.android.com/reference/android/graphics/PathMeasure.html#getPosTan%28float%2C%20float%5B%5D%2C%20float%5B%5D%29) 方法获取位置坐标，和沿着某个 Path 给定长度时的正切值。通过这样（涉及到一点数学），我们可以平移和旋转画布，从而让我们的`标记`绘制在正确的位置和方向上。
|
||||
|
||||
```
|
||||
pathMeasure.setPath(polygon.path, false)
|
||||
@@ -174,9 +174,9 @@ canvas.rotate(Math.toDegrees(angle).toFloat())
|
||||
marker.draw(canvas)
|
||||
```
|
||||
|
||||
#### Find your path
|
||||
#### 找到你的 path
|
||||
|
||||
Hopefully this post has demonstrated how a custom drawable using path creation and manipulation can be useful for building interesting graphical effects. Creating a custom drawable gives you the ultimate control to alter and animate different parts of the composition independently. This approach also lets you dynamically supply values rather than having to prepare pre-canned animations. I was very impressed with what you can achieve with Android’s `Path` APIs and the built in effects, all of which have been available since API 1.
|
||||
希望这篇文章能够说明自定义 drawable 的同时去创建和操作 path 对于生成有趣的图形效果是多么有用。 编写一个自定义 drawable，在单独更改各部分的动画效果这方面有很灵活的控制。这个方法也能让你动态更改数值，而不用需要预先就设定好整个动画。期待你们通过 Android 的 Path API 和其他内置效果实现更多新奇的效果，而这些工具早在 API 1 的时候就已经可以使用了。
|
||||
|
||||
|
||||
---
|
||||
|
||||
